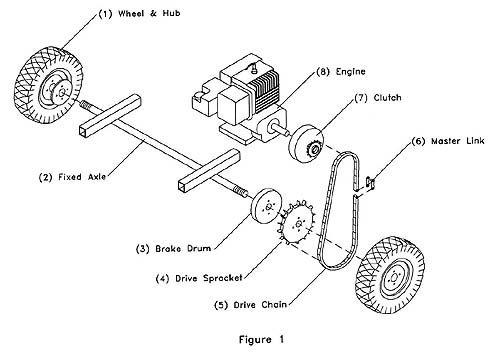

Rear Wheel/Drive Assembly

Dia.#

Item #

 Description

Qty.

1

1337  5" Wheel and Hub with Bearings 2
2 13848  3/4" X 33" Axle 1
3 1366  Brake Band and Drum 1

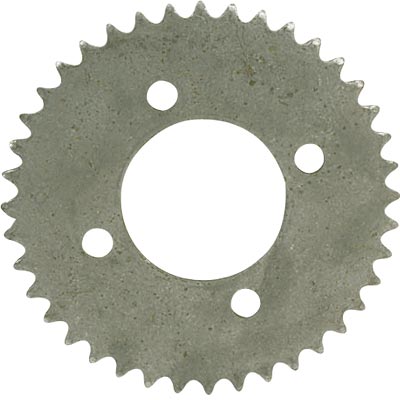

4 1363  54 Tooth Drive Sprocket 1

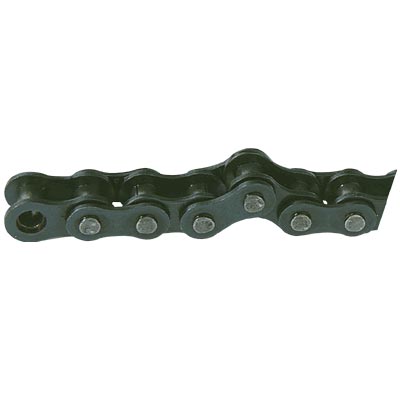

5 13651  #41 Drive Chain --
6 136511  #41 Master Connecting Link 1

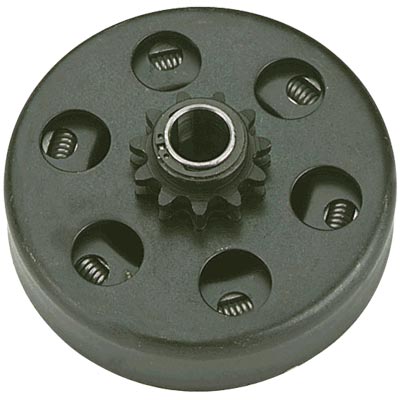

7 1373  10 Tooth Clutch 1
*8 6052  5 HP Briggs 1
6030  3 HP Briggs 1

 * Either engine can be used

Table 1
