Steering Assembly



Dia.#

Item #

 Description

Qty.

1 1330  4" Wheel w/ 3/4" Bearings 2

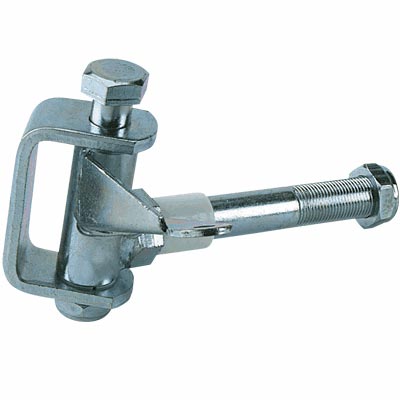

2 13891  Right Spindle Axle & Bracket 1

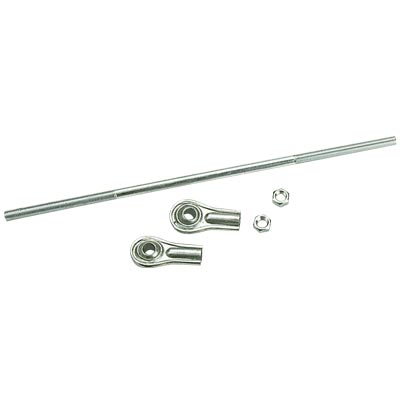

3 13811  11" Tie Rob Kit 2

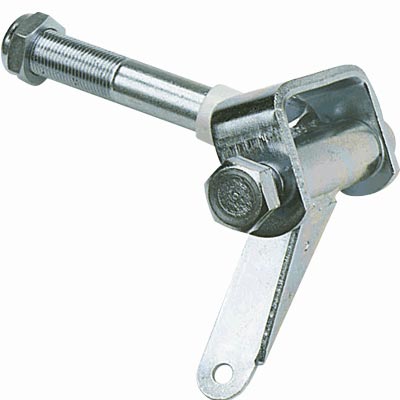

4 1389  Left Spindle Axle & Bracket 1

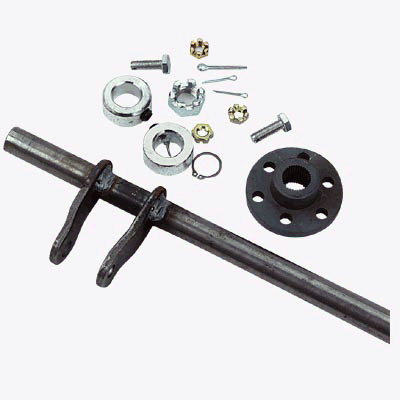

5 13814  22" Steering Shaft & Hub Kit 1

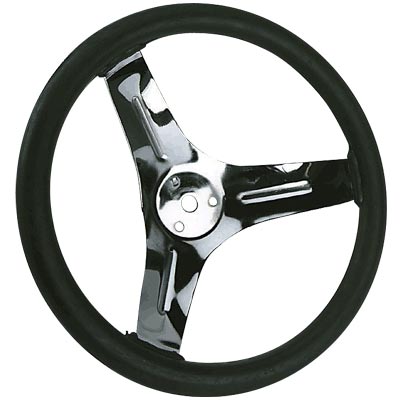

6 13825  12" Competition Steering Wheel 1

Table 3
