Throttle System

Dia.#

Item #

 Description

Qty.

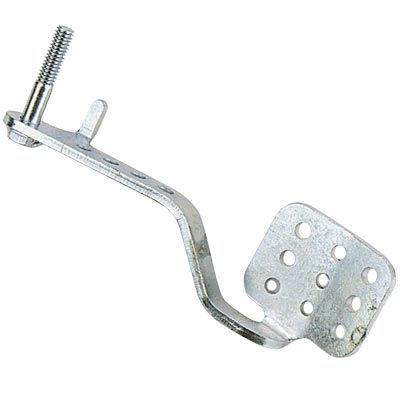

1 13820  Gas Pedal 1

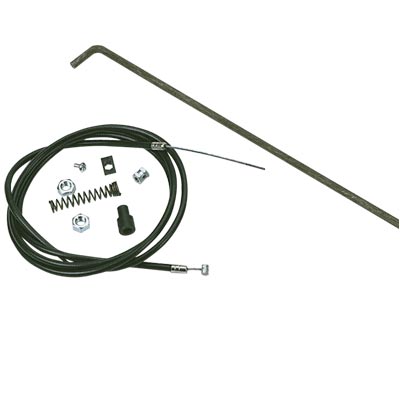

2 13823  Throttle Control Rod Kit 1

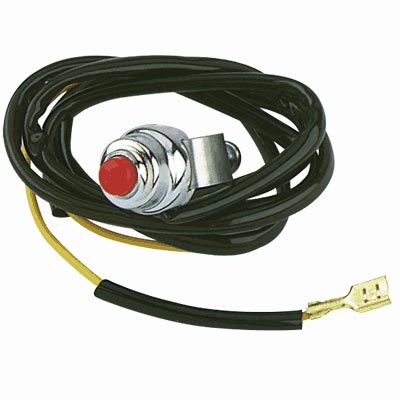

3 13824  Kill Button Switch 1

Table 6





Dia.#

Item #

 Description

Qty.

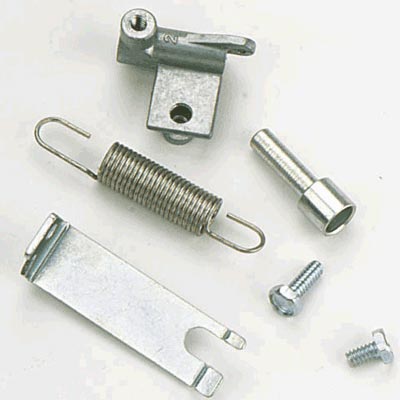

-- 2449  Throttle Cable Spring Kit 1
1 --  Spring Throttle Return 1
2 --  Spring Anchor 1
3 --  Cable Clamp 1
4 --  Hold Down Screw 1
5 --  Stop Screw 1
6 --  Cable Retainer 1

Table 7
